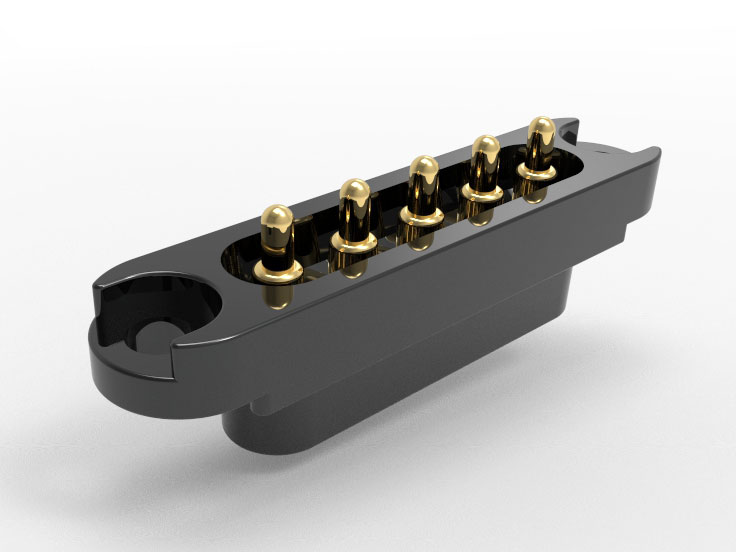

5 pin electrical connector adopts high-precision spring loaded pin, designed with IP67, electrical stability, long life, and reliability. It is precisely designed, has excellent wear resistance, and is compatible with various compact PCB layouts. Johoty uses eco-friendly brass gold plating and can design composite coatings to provide environmental adaptability. You can get highly flexible and perfect customization.

Features:

High precision, stable signal transfer.
Long lifespan, at least 10,000 connections.
Compact and adaptable to various PCB layouts.
Strong anti-interference, stability in complex uses.
High current for power-intensive applications.
Eco-friendly material, safe by EU & Am standards.

Get A Free Quote

More Selection

5 Pin Electrical Connector, Pitch 1.50~2.53, Description

Product Info: 5 pin electrical connector is a pogo pin connector that includes male pogo pins or female solid pins. Commonly used in precision electronics and equipment for frequently connecting electrical signals. It has precision and compact structure, which can effectively save space and enhance performance and life cycles.

Features: High contact accuracy and stability, achieving precise docking within a small tolerance range. It can effectively reduce signal loss and connection failures. Specially designed up to 200,000 lifespan, strong resistance to EMI and ESD, suitable for high-frequency and high-speed transfer. Multi channel signal transfer enables complex electrical connections in a relatively small space for various current and signal requirements. Compact, effectively saving internal space of the equipment. Excellent performance in small signals and high-speed transfer, suitable for high-frequency applications. Compliant with RoHS, ASTM, REACH, Provide robust electrical performance under high temperature, vibration.

Solving Problems: Resolve unstable electrical connections and contact wear. Space limited connection requirements, high-frequency and high-speed signal transfer issues. The issues of electromagnetic interference and electrostatic discharge in low-cost and efficient production. Provides excellent sealing and corrosion resistance under high temperature, dust, humidity, and vibration. Intelligent and automated testing requirements.

Specifications: Pins 5pcs, pitch 1.50~2.53mm, stroke 0.50~3.25mm, plunger length 3.60~11.00mm, plunger diameter 0.60~1.60mm, shape DIP, solder-cup, SMT, bending tail pin, right angle, etc. Voltage <50V, current 0.1~15.0A, force 20~600gf, lifespan ≤200,000 cycles, -40 ℃~+85℃, special ≤250℃, resistance ≤50mΩ, IP67, IP68, EMI, etc.

Applications: Communication and data transfer equipment, embedded systems and portable devices, smart wearable devices, mobile devices, drones. Automotive electronic system, EV and autonomous vehicle. Automation equipment and industrial robots, testing and measuring equipment. Wearable medical devices, medical instruments, and diagnostic equipment. Satellites and spacecraft, military equipment, prototype testing and experimentation.

Industries: Requirements: high-speed signal transfer, durability, low loss, miniaturization and lightweight design, low power consumption and high-speed data transfer. High temperature and humidity resistance, vibration resistance, high reliability, high-frequency data transfer. High mechanical lifespan, high temperature resistance, corrosion resistance, high-speed data communication. Low contact resistance, high signal stability, antibacterial and waterproof design, long lifespan, low maintenance. Extreme environmental adaptability, anti-interference ability, high precision, repeatability, durability for multiple insertions and removals, compatibility and modular design.

Benefits: Customers benefit from high reliability and stability, enhancing the durability and longevity of the product. Miniaturization and integration, low power consumption and high-speed signal transfer. Reduce maintenance costs, simplify production and assembly processes, be easy to integrate, and adapt to multiple devices and systems. Enhance the overall performance of the product, comply with RoHS and environmental requirements, and meet international certifications. Consistency and high-quality assurance, supporting customers’ flexible customization requirements.

5 Pin Electrical Connector, Pitch 1.50~2.53, Datasheet

Parameter	Value Range
Connector Type	Pogo pins, 5 pin electrical connector, pogo pin connector,
Pin Configuration	5 pins, single row or dual rows, Custom.
Pitch	1.50 mm to 2.53 mm, custom.
Stroke	0.50 mm to 3.25 mm, custom.
Sizes (L, W, H)	6.20 mm to 22.00 mm (L), 2.20 mm to 10.60 mm (W), 1.90 mm to 10.00 mm (H), custom.
Plunger Diameter	0.60 mm to 1.60 mm, custom.
Barrel Diameter	1.20 mm to 2.20 mm, custom.
Contact Resistance	≤ 50 mΩ, custom.
Rated Current	0.1 A to 15 A (per pin)
Rated Voltage	<50 V, custom.
Insulation Resistance	≥ 100 MΩ
Contact Force	20 gf to 600 gf per pin
Lifespan	≥ 10,000 cycles, up to 200,000 cycles, custom.
Operating Temperature	From -40°C to +85°C, can go up to +250°C, custom.
Contact Material	Gold-plated copper, stainless steel, or brass, custom.
Housing Material	Thermoplastic of PBT, PA66, or metal alloy, custom.
Environmental Protection	IP65, IP67, or IP68, EMI, custom.
Contact Plating	Gold plating (1 to 3 microns), or Nickel, composite coating, Pd, Pt, Rh, Ru, custom.
Vibration Resistance	≥ 20 G at 10 Hz to 2,000 Hz.
Shock Resistance	50 G to 100 G, custom.
Compliance	ASTM, RoHS, REACH, UL94V-0, custom.
Connector Mounting Style	Surface mount, PCB through-hole, solder-cup tail pin, right angle, custom.
Connector Orientation	Vertical, Horizontal, or Custom

Get Best Quote of 5 Pin Electrical Connector

Johoty’s 5 pin electrical connector provides excellent low impedance, high stability, and interference-free high-frequency signals. Durable and reliable, greatly improving equipment performance and life cycles. Johoty is your reliable choice that perfectly meets the demand for high quality and efficiency in European and American clients.

Get A Free Quote Now

Products Categories

Get A Free Quote

5 Pin Electrical Connector, Pitch 1.50~2.53, Applications

Connection of precision medical equipment

Based on high-precision pogo pins, 5 pin electrical connector is used for precision connection in medical devices, providing stable electrical contact. We know, pogo pins is very precise but simple, its high precision ensures low error signal and avoids data distortion. 5-pin interface supports multiple functions to run simultaneously, greatly improving device compatibility. Johoty’s pogo pin connector can maintain efficient transfer and reduce malfunctions. Whether it is a portable device or a desktop device, when you order it from Johoty, it can ensure reliable connection and long-term stable operation.

Connection of intelligent hardware products

Smart homes, smart wearables, and other devices require efficient and stable electrical connections. You are lucky to see 5 pin electrical connector has demonstrated outstanding performance in these devices. High precision connection can ensure interference free signal transfer between devices and enhances user experience. Pretty many client contact us to adopt pogo pins in complex intelligent systems. They hope to achieve efficient functional integration through simple connectors. Johoty’s spring loaded connector is compact for various sizes, and meets high-density space. After client’s trial running, it can support long-term high-frequency connections and maintain device stability.

Industrial automation systems

Accurate electrical connections are crucial in industrial automation. Obviously, our 5 pin electrical connector can provide stable current transfer, ensuring efficient coordination between various sensors and actuators. This pogo pin connector can resist the looseness caused by device vibration, avoiding equipment failure or delay. It is proven based on Johoty’s DOE, qualification and many clients’ trial run and long-term use. The ability to transfer high-frequency signals enables automation equipment to quickly respond to various commands and improve production efficiency. Multi pin design supports complex control requirements and reduces complexity of device connections.

Wireless communication devices

Wireless communication devices have high requirements for signal transfer. With high-precision design of pogo pins, our 5 pin electrical connector can provide high stability and low impedance connections. We believe it is true based on our Italian client order 5 pin electrical connector for over 3 years. It can withstand high-speed frequency and high-power transfer of wireless devices, reducing signal loss during transfer. Through male and female pogo pins, and IP67 plus magnets protection, data exchange between devices becomes smoother. This can reduce communication latency and errors. Its compact design facilitates precise assembly and connection of wireless devices. Johoty’s pogo pin connector has strong durability in various harsh environments.

Auto drive system

Autonomous driving technology relies on precise communication between multiple sensors and control units. Our 5 pin electrical connector ensures no loss and interference of signal transfer and provides stable electrical connection. it is amazing after 1-year use in our German clients’ gigafactory. High precision connections ensure efficient collaboration between modules, greatly reducing errors. Based on compact design of pogo pins, it can meet limited space inside cars and facilitates device installation. Its high durability can withstand vehicle’s vibration and changes in external environment, ensuring efficient operation of auto drive system.

High end consumer electronics products

For smartphones and tablets, precise electrical connectors are crucial. The 5 pin electrical connector provides excellent contact stability, avoiding equipment failures. In our Taiwan client’s project, Johoty completely showed manufacturer high flexible, IP67, and amazing shape designs. Its compact design is suitable for compact space of modern consumer electronics and supports multifunctional applications. Yes, its high-frequency signal transfer ensures perfect operation of multimedia functions audio and video. Through Johoty’s pogo pin connector, users can always enjoy a higher quality experience and improve device performance.

Aerospace equipment connection

The reliability requirements for aerospace equipment are very high, and any minor electrical connection issues can lead to serious consequences. After very hard and long-term qualification, our USA client, an aerospace company approved our pogo pins. So, you can see Johoty’s 5 pin electrical connector has high reliability in such devices. High precision ensures unobstructed signal transfer between devices, ensuring normal operation of navigation, communication. For Johoty’s clients, we always the best raw materials to win long-term trusts, and, it is needed to save money and time. Based on high-temperature resistance and seismic performance, it copes with various conditions. Johoty’s pogo pin connector is compact and lightweight, meeting weight and space limitations of aerospace industry. We always believe a stable electrical connection can enhance safety and efficiency significantly.

Robot system connection

Robot systems require efficient and stable electrical connections to coordinate the work between various components. Our Italian client contacted Johoty for 20A 5 pin electrical connector in their garden robots. Finally, it ensures smooth communication and charging between robot’s drive motor, sensors, battery, and control unit. Its high-precision contact ensures stable transfer of high currents and signals, avoiding robot misoperation or shutdown. It can fit high-speed transfer and ensure robot’s continuous and stable operation. Johoty’s pogo pin connector has a compact structure, it is easy to connect multiple modules in limited space. Long term use can also maintain high performance, greatly improving robots’ efficiency and reliability.

More Information

Advantages of 5 Pin Electrical Connector, Pitch 1.50~2.53

High precision contact performance

A 5 pin electrical connector based on high-precision pogo pins can provide stable and precise contact effects. Through precision CNC manufacturing, the elasticity and contact area of each contact point are optimized and designed. Compared to traditional connectors, pogo pin connectors provide more reliable signal and power transfer. Precise pogo pins can reducepoor electrical contact, improve overall stability. Based on long-term use of over 1,000 loyal customers, our spring loaded connector is suitable for electronic products that require high connection reliability.

High density miniaturization design

The 5 pin electrical connector adopts a miniaturized design, which can achieve high-density connections in limited space. By integrating 5 spring loaded pins into a compact connector, it is possible to save circuit board space and reduce device size. Their high-density design not only reduces equipment’s occupied space, but also improves product’s integration. Please believe us, this pogo pin connector can meet more complex and efficient electrical connections.

Excellent durability

Due to the use of high-quality brass and precise CNC manufacturing, the 5 pin electrical connector has excellent durability in harsh environments. Its pogo pins are machining of special music steel, which has high fatigue resistance and won’t experience contact failure after long-term use. Under extreme temperatures and intense vibrations, it can maintain stable performance. This pogo pin connector can fit long-term high-intensity use.

Accurate current transfer capability

Designing this 5 pin electrical connector, we are more focused on ensuring maximum current transfer at each contact point. Through precise current path design, pogo pin connector can carry high currents without generating excessive heat or loss. Its excellent current carrying is outstanding in some high-power applications. We confirm it is suitable for devices and electronic products that require high current and high power.

Low contact impedance

Low contact impedance is another major advantage of 5 pin electrical connector, so, signal loss and current attenuation are small. This is because contact surface of pogo pins is made of precision processed materials. This makes contact surface of each plunger tip smoother, thereby achieving extremely low electrical impedance. Therefore, the stability of high-speed signal transfer and high-frequency circuits is guaranteed, and the system can operate efficiently.

Excellent anti vibration performance

The 5 pin electrical connector has strong anti vibration performance and can effectively resist various mechanical vibrations and impacts. During frequent exercise or work, pogo pins can still maintain stable connections and won’t easily loosen or disconnect. Therefore, 5 pin electrical connector is highly suitable for industrial equipment, aerospace, and other devices that exposure to high-frequency vibrations or impacts.

Quick insertion and easy operation

Johoty designers place great emphasis on the convenience of connectors, with a 5 pin electrical connector that supports quick contact. Through our innovative structural design, users can connect or disconnect without excessive force. Johoty’s pogo pin connector is easy and intuitive to operate, greatly improving efficiency of installation and maintenance. Customer feedback: It is very suitable for electronic devices that require frequent plug.

Strong corrosion resistance

To extend life cycles and ensure long-term stability, material and surface treatment of 5 pin electrical connector adopt advanced anti-corrosion. Our pogo pin connector can effectively prevent the impact of oxidation and corrosion on its performance. Johoty always realize it through surface coating or complex composite coating. In humid or highly corrosive environments, this spring loaded connector ensures excellent electrical performance and long-term reliability.

FAQ

Is 5 pin electrical connector to transfer high-frequency signal?

Yes, 5 pin electrical connector based on high-precision pogo pins can transfer 5Gbps or 5GHz signals. It can effectively maintain signal integrity and reduce signal attenuation during transfer. Each pogo pin is designed with precision to ensure low contact impedance. Even at high-speed frequencies, signals can be transferred stably and aren’t easily affected by interference. This pogo pin connector can widely use in high-precision communication and medical, ensuring equipment’s stable operation.

Can 5 pin electrical connector withstand extreme conditions?

This 5 pin electrical connector has strong adaptability in environment, it can keep good performance in extreme environments. Its material has been specially treated to resist the effects of extreme temperatures. Under strong vibration, this pogo pin connector can also maintain stable electrical contact. Its protective design effectively prevents dust or moisture, ensuring long-term stability, durability and high performance. It is suitable for high reliable applications.

How to deal with EMI issues with 5 pin electrical connector?

The 5 pin electrical connector was designed with EMI in mind. It adopts materials and structures that are resistant to EMI, which can effectively shield external electromagnetic waves. Even in places with strong electromagnetic environments, signals can remain stable. The contact surface of each pogo pin is precisely designed to ensure signal isn’t easily disturbed. This pogo pin connector is suitable for high-frequency communication equipment and precision electronic products.

Why choose 5 pin electrical connector instead of a traditional connector?

Compared to traditional connector, 5 pin electrical connector can provide higher stability and reliability. Its design avoids common poor contact and reduces equipment failure. It can cope with higher operating frequencies and adapt to more complex electrical requirements. Compact design of pogo pin connector saves space and makes device’s design more flexible. Its high durability allows the device to always maintain good performance.

Is 5 pin electrical connector suitable for compact devices?

Yes, 5 pin electrical connector has a compact design for limited space. For microelectronic devices, it can also be perfectly adapted without affecting overall performance. Its size and exterior design allow the device to support multiple electrical channels while maintaining compact structure. With pogo pins technology, this pogo pin connector doesn’t require too much space to ensure stable connection. It fit high-density layout in smartphones, wearable devices, etc.

Can 5 pin electrical connector support quick contact?

The design of 5 pin electrical connector takes into account frequent contact. The high-precision design of pogo pins ensures contact performance is not affected after multiple contact. The connector is made of wear-resistant material to ensure good connection after long-term contact. In high-frequency usage, the contact force and signal transfer of this pogo pin connector can remain stable. It is very suitable for frequent connections and disconnections.

How can 5 pin electrical connector improve device’s signal quality?

Due to its high-precision design, 5 pin electrical connector ensures stable signal transfer, reducing signal loss and interference. Precision machining of its contact surface reduces contact impedance and ensures higher signal quality. It can effectively prevent signal attenuation or delay. For complex electrical systems, multiple signal channels can also operate in parallel without interfering with each other. This pogo pin connector is suitable for high-end devices that require high signal quality.

How much current can 5 pin electrical connector support?

The 5 pin electrical connector uses highly conductive materials and precision CNC manufacturing to transfer high currents. Each pogo pin design can withstand rated current without overheating. It can maintain stable electrical contact under high current loads, preventing damage caused by current overload. The design of 5 pin electrical connector can balance the requirements between high current and frequency. This makes it suitable for simultaneous transfer of power and signals. Its high current resistance makes it excellent in industrial, medical and other fields.
