Surface Mount Pogo Pins, L4.00~4.99 mm, wear resistance

Surface Mount Pogo Pins, L4.00~4.99 mm, Low voltage drop

Surface Mount Pogo Pins, L4.00~4.99 mm, Excellent conductivity

Surface Mount Pogo Pins, L4.00~4.99 mm, High-precision

Surface Mount Pogo Pins, 4~4.99, Best Conductivity

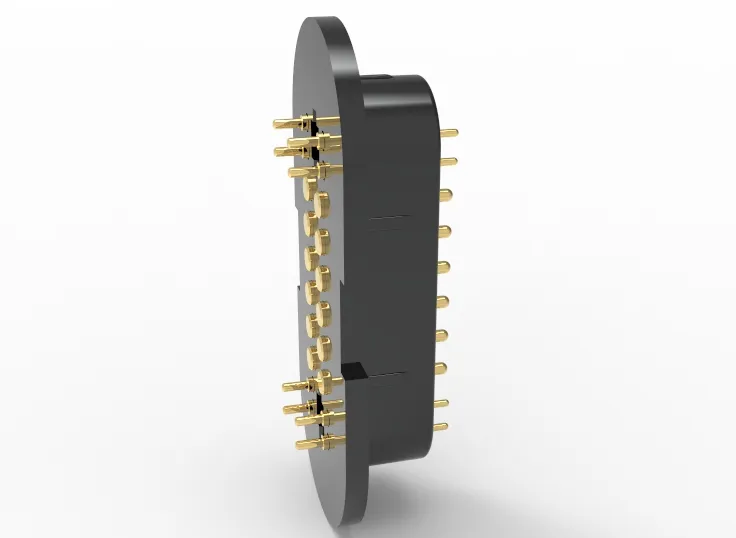

Surface Mount Pogo Pins, SMT-ready, offer high-precision contact, excellent electrical conductivity, and low voltage drop. As a top Manufacturer, we provide Surface Mount Pogo Pins for various classic uses, with fast response and custom services, delivering great value and meeting your high standards.

Product Features:

Precision design for stable long-term electrical connections.
High-conductivity materials reduce energy loss and resistance.
Reliable high quality with up to 10,000 cycles of lifespan.
Compatible with various SMT processes for easy installation.
Custom designs meet a range of complex application needs.
Strict quality control ensures perfect performance for every pin.

Get A Free Quote

More Selection

Surface Mount Pogo Pins, L 4.00~4.99 mm, Description

Product Info: Surface Mount Pogo Pins offer a highly efficient connection solution with a durable spring design and stable current transmission, making them ideal for modern electronic devices. Their compact design fits small devices perfectly, making them the top choice for high-density PCBs. The precise spring mechanism ensures long-lasting reliability, withstanding frequent use, and becoming the go-to connector in the precision electronics industry.
Product Features: At the core of Surface Mount Pogo Pins is their superior surface-mount technology, enabling quick and easy installation, significantly boosting production efficiency. With their sturdy design that fights off impacts and corrosion, these pogo pins remain dependable, no matter how challenging the environment. The unique spring structure delivers excellent contact force and conductivity, guaranteeing stable data and power transmission.
Problem Solved: As the electronics industry moves towards miniaturization and efficient connections, Surface Mount Pogo Pins tackle the challenge of complex high-density board connections with their compact design and flexibility. They eliminate the issues of traditional soldering, reducing failure risks and extending device life and reliability.
Specifications: Surface Mount Pogo Pins come in various specifications, with a maximum working current of up to 50A, contact resistance as low as 15 milliohms, and an operating temperature range of -40°C to +85°C. With over 10,000 mating cycles and corrosion-resistant gold-plated tips, they ensure long-lasting conductivity. Their compact design, with thickness as low as 0.5mm, meets the demands of modern device miniaturization.
Successful Application: In a wearable smart device, Surface Mount Pogo Pins addressed the need for high-density, high-precision connectors in small devices. After implementation, the client’s production efficiency increased by 30%, while solder-related instability decreased by 5%, ensuring consistent current transmission and long-term reliability.
Target Industries: Surface Mount Pogo Pins are widely used in consumer electronics, wearables, medical devices, and automotive electronics. They are especially critical in high-precision devices like smartwatches and tablets, where their performance and easy installation make them the standard choice across industries.
Customer Benefits: By choosing Johoty’s Surface Mount Pogo Pins, customers gain faster installation times and increased product stability, significantly lowering maintenance costs. The excellent shock resistance and long-life design reduce overall equipment costs by 15%. Additionally, improved reliability means fewer downtime issues, increasing operational efficiency and customer satisfaction.

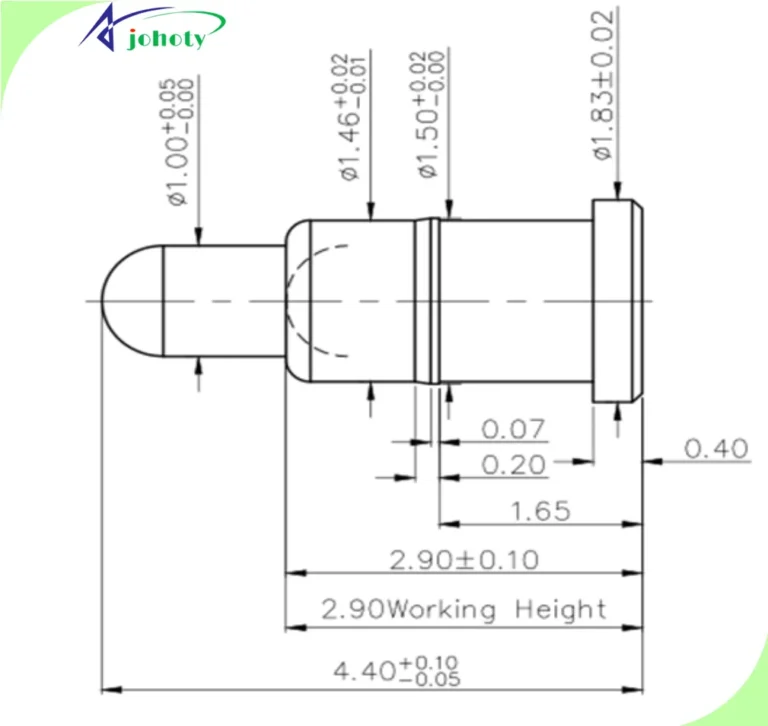

Surface Mount Pogo Pins, L 4.00~4.99 mm Datasheet

No.#	Categories	Specification Range	Unit	Purpose	Benefits	Applications
1	Barrel OD	0.30~4.00, custom	mm	*	*	*
2	Plunger OD	0.15~3.00, custom	mm	*	*	*
3	Tail Pin	SMT, Flat Bottom	*	*	*	*
4	Length	4.00~4.99	mm	*	*	*
5	Stroke	≥0.30, custom	mm	*	*	*
8	Voltage Rating	≥3.0, custom	V	*	*	*
9	Current Rating	≥0.1,custom	A	*	*	*
10	Spring Force	≥15,custom	gf	*	*	*
12	1. Material	Brass	*	Brass alloys are known for excellent conductivity and corrosion resistance, commonly used in electronic products. Brass, a common copper alloy, offers good machinability.	High conductivity, good corrosion resistance, and excellent machinability. Brass also has good strength and toughness, enduring frequent insertions and withdrawals.	Widely applied in connectors, switches, and sensors of electronic devices.
13	2. Material	Stainless Steel	*	Stainless steel boasts excellent corrosion resistance, mechanical strength, and wear resistance. Common types include 304 and 316.	High strength, corrosion resistance, and heat resistance, suitable for harsh environments.	Used in medical equipment, automotive electronics, and industrial control systems.
14	3. Material	Tungsten	*	Tungsten alloys exhibit extremely high hardness, density, and wear resistance, along with good conductivity.	Very high hardness and wear resistance, capable of withstanding high pressure and frequent insertions.	Mainly used in high-frequency electronic connectors and high-load mechanical parts.
15	4. Material	Nickel	*	Nickel alloys feature outstanding corrosion resistance, high-temperature resistance, and good strength. Common alloys include Inconel and Monel.	Excellent corrosion resistance and high-temperature performance, suitable for extreme environmental applications.	Suitable for aerospace, chemical industries, and high-temperature equipment.
16	5. Material	Silver	*	Silver alloys offer excellent conductivity and oxidation resistance, commonly used in high-demand electrical connection components.	Outstanding conductivity and oxidation resistance, enhancing connection reliability and stability.	Widely used in high-frequency electronic devices, high-end connectors, and high-performance computer components.
17	1. Plating	Gold/Nickel	*	Gold/nickel alloys have excellent conductivity and corrosion resistance, making them ideal for high-frequency and high-signal transmission.	They are durable, stable, long-lasting, and highly resistant to oxidation.	Commonly used in demanding electronic devices such as medical equipment, aerospace instruments, and communication devices.
18	2. Plating	Platinum/Nickel	*	Platinum/nickel alloys boast outstanding corrosion resistance and stable electrical conductivity.	They excel in high-temperature environments, exhibit strong chemical stability, and have superior oxidation resistance.	Primarily applied in medical equipment, testing and measurement devices, and high-precision electronic instruments.
19	3. Plating	Silver Plating	*	Silver offers excellent electrical conductivity, making it an ideal choice for transmitting high-frequency signals.	It has low resistance, high electrical conductivity, and excellent contact performance.	Suitable for electronic devices requiring high-frequency signal transmission, such as RF modules and wireless communication devices.
20	4. Plating	Gold/Tin Plating	*	Gold/tin plating combines the corrosion resistance of gold with the good solderability of tin.	It is highly durable, easy to solder, and provides excellent soldering connections.	Typically used in circuit board connectors and test terminals that require frequent connection and disconnection.
21	5. Plating	Nickel Plating	*	Nickel plating offers good wear resistance and corrosion protection.	It is cost-effective, protects base materials from corrosion, and enhances mechanical strength.	Widely used in general electronic devices, automotive electronics, and industrial control sectors.

Get a Free Quote for Best Surface Mount Pogo Pins

Our Surface Mount Pogo Pins offer top-notch conductivity and reliable contact stability for long-lasting performance. Precision-made with an extended lifespan. Efficient, stable solutions for your projects. Choose Johoty now and start boosting your profits!

Get A Free Quote Now

Products Categories

Get A Free Quote

Surface Mount Pogo Pins, L 4.00~4.99 mm, Applications

Smartwatch Charging Solution
Smartwatches need efficient charging ports. Use 4.00 mm Pogo Pins for durable and effective charging. Efficiency boosts by 30%, and port lifespan extends by 50%.
Medical Device Contacts
High-precision medical devices require stable signal transmission. Use 4.80 mm Surface Mount Pogo Pins for reliable signal transfer. Stability improves by 20%, and error rates drop by 15%.
Automotive Electronics Connection
Automotive modules need reliable connections. Use 4.50 mm Pogo Pins for high-temperature and vibration resistance. Connection reliability increases by 40%, and lifespan extends by 30%.
Mobile Device Testing
Mobile device production needs fast testing. Use 4.70 mm Pogo Pins for efficient, reliable testing. Testing speed improves by 25%, and failure rate drops by 20%.
IoT Device Connection
IoT devices require dependable data transmission. Use 4.20 mm Surface Mount Pogo Pins for stable connections. Data transfer stability rises by 30%, and connection failures decrease by 15%.
Industrial Control Systems
Industrial controls need precise signal transfer. Use 4.00-4.90 mm Pogo Pins for accuracy. Signal precision increases by 20%, and error rates drop by 10%.
Drone Power Management
Drones need efficient power management. Use 4.80 mm Pogo Pins for effective current transfer. Power efficiency improves by 25%, and battery life extends by 20%.
Smart Home Devices
Smart home devices need stable signal connections. Use 4.90 mm Pogo Pins for durable, reliable connections. Signal stability rises by 35%, and device failure rates drop by 15%.

Notice: Trying to access array offset on value of type null in /home/johotypro/webapps/johotypro/wp-content/plugins/elementor/includes/widgets/video.php on line 1199

More Information

Advantages of Surface Mount Pogo Pins, L 4.00~4.99 mm

1. High Precision Design
Our Surface Mount Pogo Pins are made with a tight tolerance of ±0.01 mm, ensuring reliable and consistent performance in all applications.

2. Excellent Conductivity
With a contact resistance as low as 0.015 ohms, our Pogo Pins offer superior conductivity for high-precision electronics.

3. Long Lifespan
Tested over 50,000 cycles, our Pogo Pins are built to last, extending the product’s lifespan and stability.

4. High Elastic Recovery
Made from top-quality materials, our pogo pins can handle spring forces from 15gf to 100N or more, bouncing back quickly after compression to ensure stable connections.

5. Optimized Installation Efficiency
Designed for SMT, our pogo pins boost production speed by 30%, significantly improving efficiency and reducing installation time.

6. Superior Corrosion Resistance
Gold-plated for up to 96 hours of salt spray resistance, our pogo pins are highly corrosion-resistant, ideal for harsh environments.

7. Wide Compatibility
Compatible with various PCB materials and packages, our Pogo Pins fit a wide range of circuit board designs, enhancing flexibility.

8. Outstanding Temperature Stability
Our pogo pins operate reliably from -40°C to +125°C, making them suitable for diverse industrial and consumer electronics in extreme conditions.

FAQ:

1. What’s the lifespan of Surface Mount Pogo Pins?

Our Pogo Pins last over 200,000 cycles, thanks to high-strength spring steel and rigorous testing. Pogo Pins handle long-term, high-frequency use with ease, reducing replacement needs and maintenance costs while boosting device stability and reliability.

2. What’s the contact resistance of Surface Mount Pogo Pins?

Our Pogo Pins have a contact resistance of under 15 milliohms, ensuring stable and efficient signal transfer. With high-quality plating, Pogo Pins minimize signal loss and are tested to meet international standards, enhancing device performance and energy efficiency.

3. What’s the operating temperature range for Surface Mount Pogo Pins?

Our Pogo Pins work reliably in temperatures from -40°C to +125°C, with standard operation between -40°C and +85°C. Pogo Pins are designed to handle harsh conditions, making them perfect for heavy-duty industrial and military use.

4. What’s the rated current for Surface Mount Pogo Pins?

Our Surface Mount Pogo Pins are rated for currents greater than 0.01A and can be customized to fit high-current applications. Pogo Pins are designed with high-conductivity materials for efficient and stable current transfer, offering great design flexibility and reliability.

5. How do you ensure high consistency of Surface Mount Pogo Pins?

We use advanced automation and strict quality control to ensure Pogo Pins meet top standards. Each batch is put through rigorous testing, and we deliver detailed reports to confirm the quality. Our ISO9001 certification guarantees consistent high quality for reliable performance.

6. What’s Johoty’s delivery time for Surface Mount Pogo Pins?

Standard Surface Mount Pogo Pins are delivered in 2 to 3 weeks. Custom orders’ delivery times are discussed upon order confirmation. Our expedited services handle urgent requests, guaranteeing quick delivery to keep your projects right on schedule.
